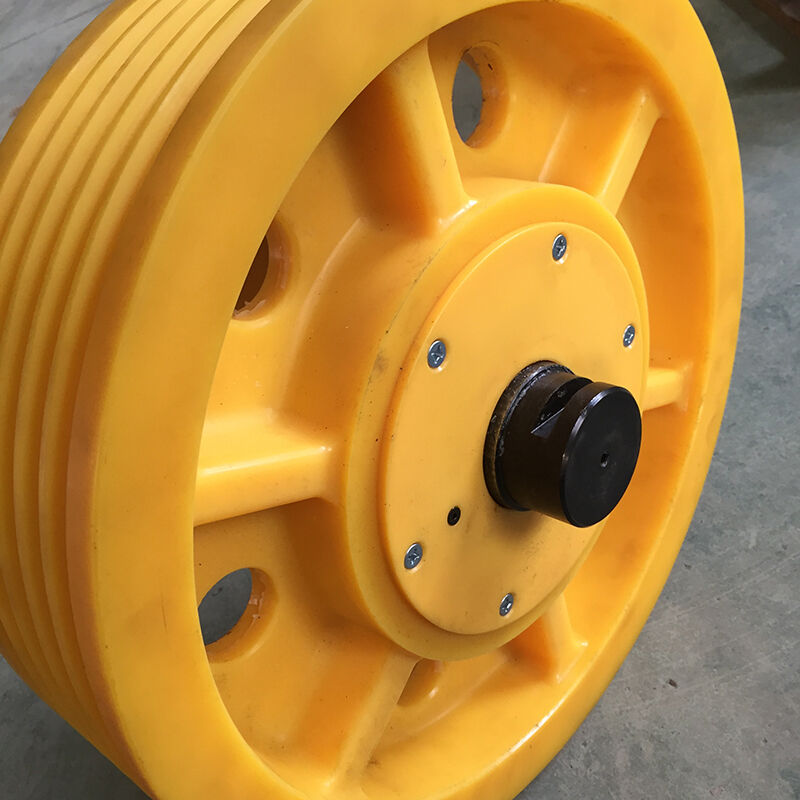

Nylon Traction Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley

Nylon Traction Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley

yellow nylon pulley wheels

Elevator nylon pulley wheels

yellow Elevator Pulley

Place of Origin:

Zhejiang, China

Brand Name:

Boguan

Chat Now
Request A Quote
Nylon Traction Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley Nylon Traction Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley Nylon Traction Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley Nylon Traction Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley Nylon Traction Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley Nylon Traction Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley
Product Details
Warranty:
1 Year
After-sale Service:
Online Technical Support, Others
Project Solution Capability:
Others
Type:
Elevator Parts
Materal:
Nylon
Color:
Yellow
Applicable:
All Kind Of Elevator
Payment Terms:
T/T
Delivery Time:
7-30 Working Days
Highlight:

yellow nylon pulley wheels

,

Elevator nylon pulley wheels

,

yellow Elevator Pulley

Payment & Shipping Terms
Minimum Order Quantity
10 pieces
Price
$30-100 / piece
RELATED PRODUCTS
Good price Movable Elevator Rope Fastener 6mm 8mm 10mm Wedge Socket Elevator Parts online

Movable Elevator Rope Fastener 6mm 8mm 10mm Wedge Socket Elevator Parts

Chat Now
Good price Rope Attachment Wedge Socket 3/8 Elevator Rope Fastener 13mm Steel online

Rope Attachment Wedge Socket 3/8 Elevator Rope Fastener 13mm Steel

Chat Now
Good price Modern Elevator Rope Fastener Overspeed Governor Speed Limiter Rope Attachment online

Modern Elevator Rope Fastener Overspeed Governor Speed Limiter Rope Attachment

Chat Now
Good price Wedge Socket Fastener For Elevator Rope 6-16mm Elevator Parts Movable Rope Fasteners online

Wedge Socket Fastener For Elevator Rope 6-16mm Elevator Parts Movable Rope Fasteners

Chat Now
CONTACT US
86--18767002727
lindsay@boguanlift.com
Chat Now
Product Description



Elevator Nylon Traction Pulley Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley

Product Overview
The nylon traction pulley is manufactured from high-quality cast nylon (PA 6G / MC nylon). As a key component of the elevator traction system, it changes the direction of wire rope force and increases the center distance between the car and counterweight. It offers significant advantages including self-lubrication, maintenance-free operation, and low noise.

Key Features

· Self-Lubricating & Oil-Free: The nylon material has a low friction coefficient, requiring no grease during operation. It eliminates oil contamination and greatly reduces maintenance costs.
· Quiet Operation: The material naturally absorbs vibration and reduces noise. When paired with precision bearings, it significantly lowers friction noise during elevator operation.
· Lightweight & Durable: Weighs only about 1/7 of a steel sheave, making installation and handling easier. Offers excellent wear resistance and long service life.
· Precision Machining: Rope grooves are CNC-machined for accurate dimensions, effectively reducing wire rope wear.
· High-Visibility Color: The internationally standardized yellow color alerts maintenance personnel to rotating parts.

Specifications

· Diameter range: Φ120–800mm (common sizes: 200–550mm)
· Applicable rope diameter: 8–16mm (customizable)
· Groove types: U-groove / V-groove / Undercut semi-circular groove
· Bearing configuration: Sealed deep-groove ball bearings, dustproof and maintenance-free

Applications
Suitable for residential passenger elevators, commercial elevators, machine-room-less (MRL) elevators, and home lifts. Especially ideal for locations with high requirements for quietness and cleanliness.

Installation & Service
During installation, ensure end-face parallelism and verticality error ≤2.0mm. Custom non-standard sizes are supported. Load calculation and installation guidance services are available.

If you need to adjust the type and diameter range of the rope groove or supplement specific model parameters, further customization is possible.





Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.



1, Many specifications

2, good quality

3, reasonable prices

4, thoughtful service

Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.



PS:1.This tariff preference is based on the US CBP Announcement No. * * *, and the final tax rate is subject to actual customs clearance.

2. If the tariff will be adjusted after the window period, unfinished orders can negotiate price adjustments or free cancellation.









Nylon Traction Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley 1Nylon Traction Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley 3Nylon Traction Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley 5Nylon Traction Elevator Nylon Pulley Wheels Traction Sheave Elevator Drive Pulley 7
