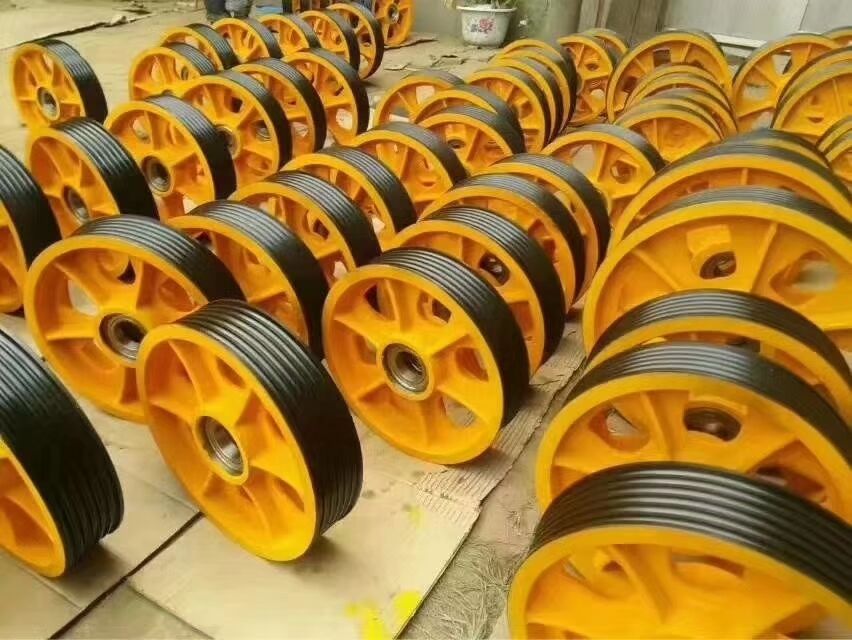

Name: Cast Iron Elevator Guide Wheel Elevator Traction Pulley Deflector Sheave Rope Wheel
Brand: Quzhou Boguan Elevator Co., Ltd.
SKU: GDTW01
Price: 115.00 USD
Availability: InStock

Home > Products > Elevator Traction System >

Cast Iron Elevator Guide Wheel Elevator Traction Pulley Deflector Sheave Rope Wheel

Cast Iron Elevator Pulley

Hotel Elevator Pulley

elevator traction pulley

Place of Origin:

Zhejiang, China

Brand Name:

Boguan

Model Number:

GDTW01

Chat Now

Request A Quote

Product Details

Warranty:

N/A

After-sale Service:

N/A

Project Solution Capability:

Others

Application:

Hotel

Design Style:

Contemporary

Type:

Elevator Parts

Material:

Steel,cole-rolled Plate,

Color:

All Color

Product Name:

Mitsubishi Traction Wheel

Size:

All Size

Delivery:

10-30Working Days

Payment Terms:

T/T

Applicable:

Elevator Traction Machine

Highlight:

Cast Iron Elevator Pulley

Hotel Elevator Pulley

elevator traction pulley

Payment & Shipping Terms

Minimum Order Quantity

2 pieces

Price

$30-200 / piece

Movable Elevator Rope Fastener 6mm 8mm 10mm Wedge Socket Elevator Parts

Chat Now

Rope Attachment Wedge Socket 3/8 Elevator Rope Fastener 13mm Steel

Chat Now

Modern Elevator Rope Fastener Overspeed Governor Speed Limiter Rope Attachment

Chat Now

Wedge Socket Fastener For Elevator Rope 6-16mm Elevator Parts Movable Rope Fasteners

Chat Now

86--18767002727

lindsay@boguanlift.com

Chat Now

Product Description

Custom Processing Elevator Cast iron elevator guide wheel elevator factory manufacturingTraction Pulley ,Deflector Sheave,rope Wheel

Product Overview

The cast iron traction pulley is manufactured from high-strength gray cast iron or ductile cast iron. As a key component of the elevator traction system, it changes the direction of wire rope force and increases the center distance between the car and counterweight. With excellent rigidity and impact resistance, it is especially suitable for heavy-duty and high-frequency elevator applications.

Key Features

· High Strength & Durability: Cast iron provides excellent rigidity and impact resistance, capable of withstanding large dynamic loads without deformation over long-term use.

· Excellent Wear Resistance: Rope grooves are surface-hardened for outstanding wear resistance, ensuring long-term stability when used with wire ropes.

· Dimensional Stability: Cast iron offers good creep resistance, maintaining precision under significant temperature changes or long-term load conditions.

· Precision Machining: Rope grooves are CNC-machined with minimal profile error, effectively reducing wire rope wear.

· High Load Capacity: Meets the demands of large-tonnage freight elevators and high-capacity passenger elevators.

Specifications

· Diameter range: Φ200–1000mm

· Applicable rope diameter: 6–16mm (customizable)

· Groove types: U-groove / Undercut semi-circular groove

· Bearing configuration: Heavy-duty deep-groove ball bearings or tapered roller bearings for high load capacity

Applications

Suitable for large-tonnage freight elevators, high-frequency passenger elevators, high-rise high-speed elevators, and industrial elevators with heavy loads.

Installation & Service

During installation, ensure end-face parallelism and verticality error ≤2.0mm. Custom non-standard sizes are supported. Load calculation and installation guidance services are available.

If you need to adjust the type and diameter range of the rope groove or supplement specific model parameters, further customization is possible.

Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.

1, Many specifications

2, good quality

3, reasonable prices

4, thoughtful service

Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.

PS:1.This tariff preference is based on the US CBP Announcement No. * * *, and the final tax rate is subject to actual customs clearance.

2. If the tariff will be adjusted after the window period, unfinished orders can negotiate price adjustments or free cancellation.

Elevator Traction Wheel Deflector Sheave for Elevator,all size can customization
