Modern Elevator Sensor Switch Z-15GDA55-B5Vy Switch for Elevator Parts RZ-15GD(T)-B3 Brake Holding Switch

Modern Elevator Sensor Switch Z-15GDA55-B5Vy Switch for Elevator Parts RZ-15GD(T)-B3 Brake Holding Switch

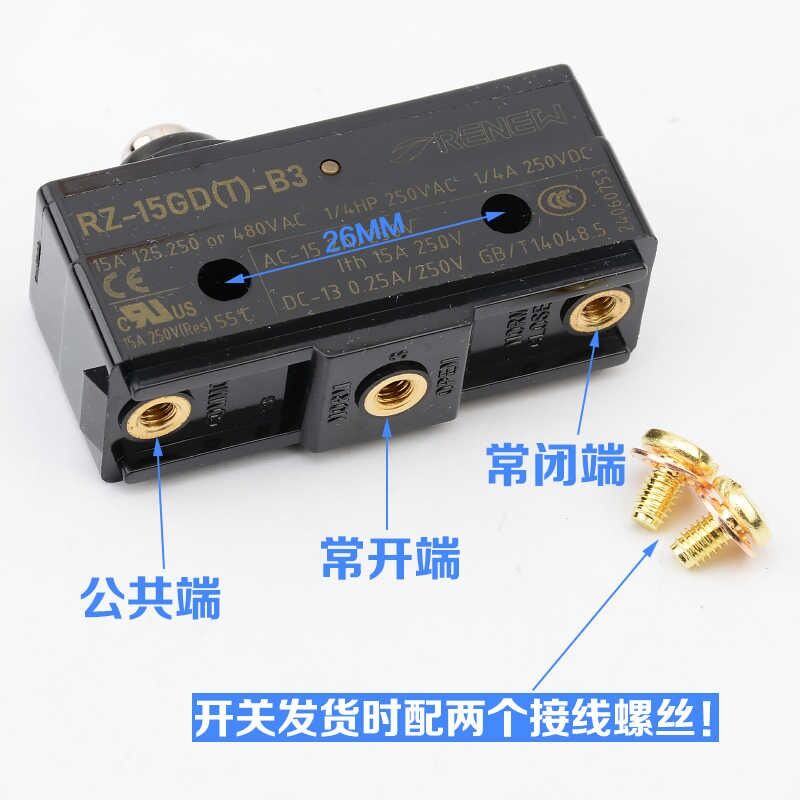

The RZ-15GD(T)-B3 is a plunger-type microswitch, designed for elevator brake detection, door lock contact and limit control, serving as a core component in elevator safety circuits.

Encapsulated in a high-strength flame-retardant plastic housing, it features IP62 protection, dust and drip resistance, vibration and shock resistance, suitable for elevator hoistways at -25℃ to +80℃. Built-in SPDT contacts rated 15A/250VAC, with contact resistance ≤30mΩ, insulation resistance ≥100MΩ and AC2000V dielectric strength, ensuring stable electrical performance. It offers sensitive and precise actuation (21.5±0.5mm operating position) with high repeat accuracy. Mechanical life exceeds 20 million cycles, electrical life 500,000 cycles for long-term reliability. Compact with screw terminals for easy installation, it is certified to UL/CUL, CE, CCC and RoHS compliant.

Widely used for elevator brake status detection, door lock closure verification, limit/overtravel protection, ensuring safe elevator start, stop and operation.

Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.

1, Many specifications

2, good quality

3, reasonable prices

4, thoughtful service

Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.
