Place of Origin:
Zhejiang, China
Brand Name:
Boguan
Model Number:
109，108
Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.
1, Many specifications
2, good quality
3, reasonable prices
4, thoughtful service
Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.
PS:1.This tariff preference is based on the US CBP Announcement No. * * *, and the final tax rate is subject to actual customs clearance.
2. If the tariff will be adjusted after the window period, unfinished orders can negotiate price adjustments or free cancellation.
|

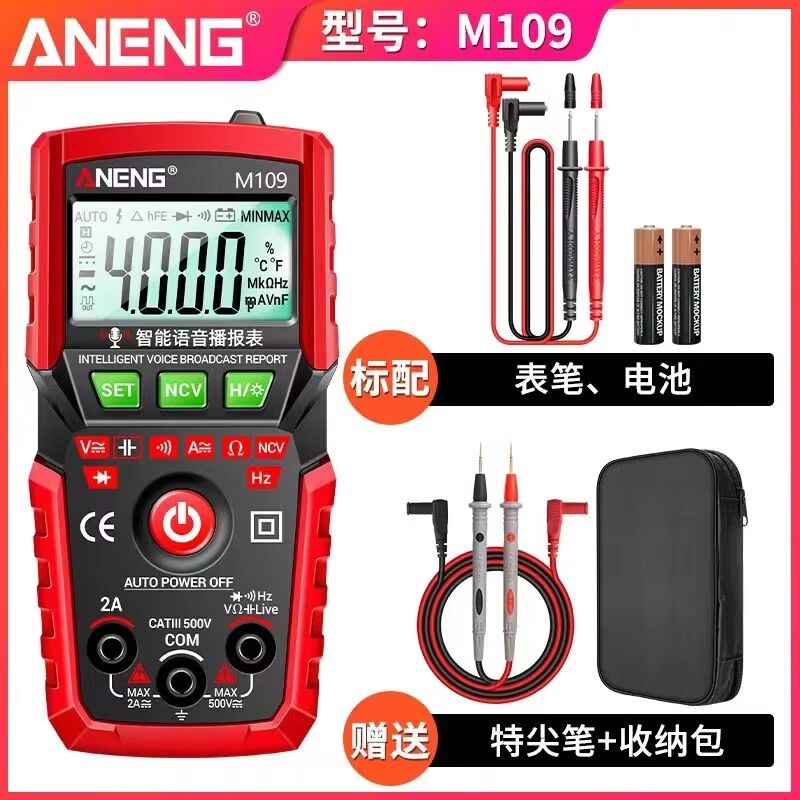

M109 Function Parameter
|
|
|
|
|||
|
Functional
|
Range
|
Resolution
|
Accuracy
|
|||
|
AC voltage
|
0V-500V
|
0.001V-1V
|
±(1.5%+8d)
|
|||
|
DC Voltage
|
0V-500V
|
0.001V-1V
|
±(1.2%+5d)
|
|||
|
AC current
|
0mA-2A
|
0.1mA-1mA
|
±(3.0%+8d)
|
|||
|
DC current
|
0mA-2A
|
0.1mA-1mA
|
±(2.5%+8d)
|
|||
|
Resistance
|
0KΩ-20.00MΩ
|
0Ω-10KΩ
|
±(1.5%+10d)
|
|||
|
Capacitance
|
0nF-40mF
|
0pF-10uF
|
±(10%+8d)
|
|||
|
Hz
|
0Hz-4MHz
|
0Hz-1KHz
|
±(4.0%+10d)
|
|||
|
NCV
|
√
|
|
|
|||
|
Diode tube
|
√
|
|
|
|||
|
Buzzer
|
√
|
|
|
|||
|
Data Hold
|
√
|
|
|
|||
|
Automatic Recognition
|
√
|
|
|
|||
|
Automatic Shutdown
|
√
|
|
|
|||
|
Flashlight
|
√
|
|
|
|||
|
Voice Announcements
|
√
|
|
|
|||
|
Weight
|
107.5g
|
Screen Display
|
LCD backlit screen
|
|||
|
Battery
|
Two No. 7 batteries
|
Total length of probe
|
74cm/29.1in
|
|||
|
Material
|
ABS/Silicone
|
Probe Material
|
PVC/brass
|
|||
|
Maximum Screen Display
|
4000 words digital display
|
Range
|
automatic
|
|||
