Place of Origin:
Zhejiang, China
Brand Name:
Boguan

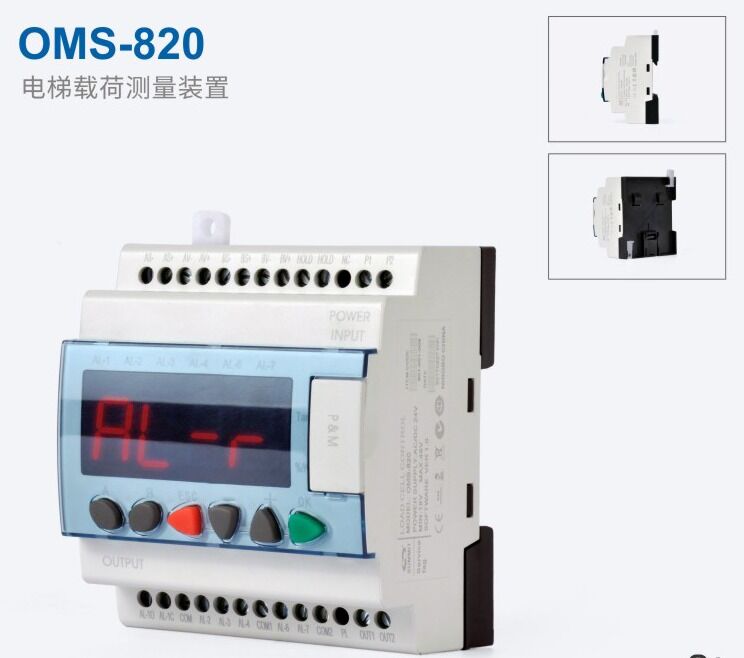

OMS-820 Elevator Overload Watching System Overload Alarm Elevator Load Measurement Controller Weighing Sensor Equipment
Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.
1, Many specifications
2, good quality
3, reasonable prices
4, thoughtful service
Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.
PS:1.This tariff preference is based on the US CBP Announcement No. * * *, and the final tax rate is subject to actual customs clearance.
2. If the tariff will be adjusted after the window period, unfinished orders can negotiate price adjustments or free cancellation.
|
Model
|
OMS-820
|
|
Product Function
|
1.Four digit LED digital tube display.
2.Multi button operation,quick and easy debugging.
3.Green,high-efficiency,low energy power supply. 4.Broken and loose rope alarm output protection. 5.Wire rope tension imbalance alarm output and tension adjustment indication.
6. 2 sensor measurement channels (up to 8 channels can be increased).
7.Voltage or current analog output (* optional).
8.Car load status display (external display module * optional).
9.AC/DC 12~230V output at the "HOLD" end.
10.Custom settings for relay action mode. |
|
Operating voltage
|
AC/DC 16~48V
|
|
Nominal power
|
≤4W
|
|
Load cell channel
|
2*
|
|
Relay number
|
6 (Overload,Full,Half empty,Rope loose,Rope deviation)
|
|
Contact load
|
1A 125 VAC / 2A 30VDC,5A 250VAC / 5A 30VDC
|
|
Display type
|
4 digits 0.36 inch LED
|
|
Display mode
|
Weight/Percentage
|
|
Key number
|
6
|
|
Voltage analog
|
-10~+10V,0~+10V
|
|
Current analog
|
4~20 mA
|
|
Sensor operating voltage
|
5 VDC
|
|
Signal hold voltage
|
AC/DC 12~230 V
|
|
Operating temperature
|
-20~+60 ℃
|
|
Size
|
90*84*58mm
|
|
Weight
|
260g
|
