Place of Origin:
Zhejiang, China
Brand Name:
Boguan
Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.
1, Many specifications
2, good quality
3, reasonable prices
4, thoughtful service
Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.
PS:1.This tariff preference is based on the US CBP Announcement No. * * *, and the final tax rate is subject to actual customs clearance.
2. If the tariff will be adjusted after the window period, unfinished orders can negotiate price adjustments or free cancellation.
|

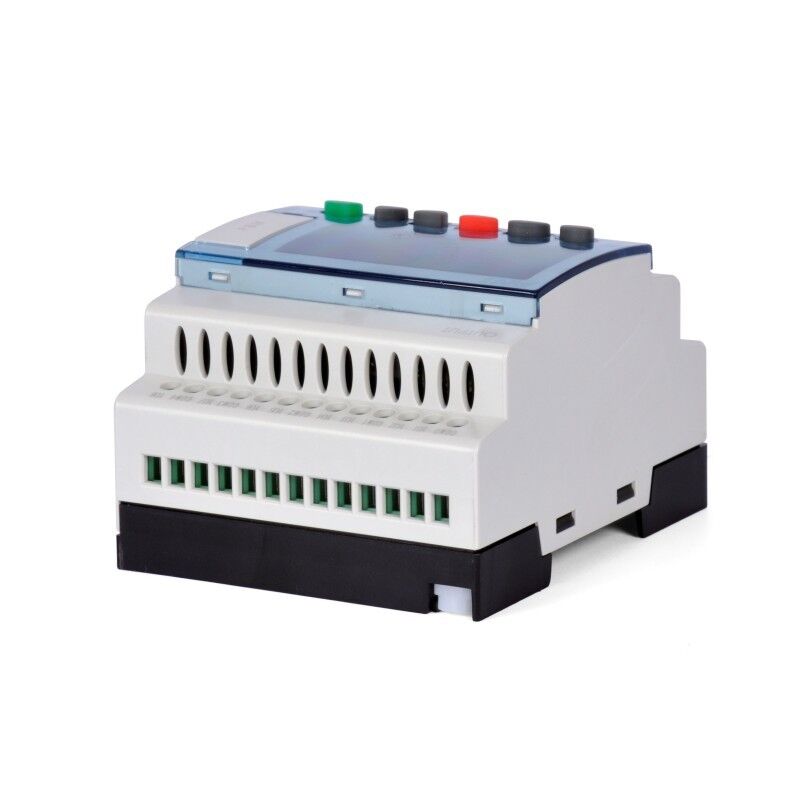

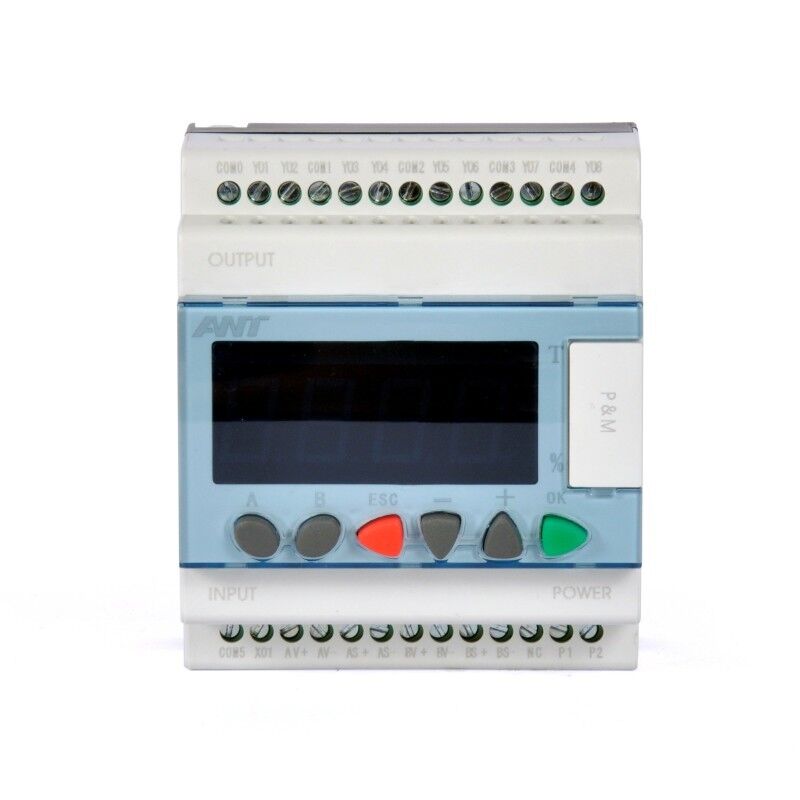

Model
|
OMS-560
|
|
|
|
|||
|
Product Function
|
1.Four digit LED digital tube display.
2.Quick installation,fixed installation with rails and screws.
3.Multi button operation,quick and easy debugging. 4.Green,high-efficiency,low energy power supply. 5. 2 sensor measurement channels (up to 8 channels can be increased) 6.Weight and percentage display (custom settings)
7.AC/DC 10~45V output at the "HOLD" end.
8.Built-in buzzer alarm reminder.
9. 5 relay outputs(no load,heavy load,overload,sound,light)
|
|
|
|
|||
|
|
|
|
|
|
|||
|
Operating voltage
|
AC/DC 16~48V
|
|
|
|
|||
|
Nominal power
|
≤4W
|
|
|
|
|||
|
Load cell channel
|
2*
|
|
|
|
|||
|
Relay number
|
5(Overload,Full load,Empty load,Optical,Acoustic)
|
|
|
|
|||
|
Contact load
|
8A 250VAC,5A 250VAC / 5A 30VDC
|
|
|
|
|||
|
Display type
|
4 digits 0.56 inch LED
|
|
|
|
|||
|
Display mode
|
Weight/Percentage
|
|
|
|
|||
|
Key number
|
6
|
|
|
|
|||
|
Sensor operating voltage
|
5VDC
|
|
|
|
|||
|
Measuring precision
|
AC/DC 10-45V
|
|
|
|
|||
|
Operating temperature
|
-20℃ ~ +60℃
|
|
|
|
|||
|
Shell meterial
|
ABS
|
|
|
|
|||
|
Size
|
90*84*58mm
|
|
|
|
|||
|
Weight
|
265g
|
|
|
|
|||
|
|
|
|
|
|
|||
