Place of Origin:
Zhejiang, China
Brand Name:
Boguan
Model Number:
SUMT-QZX(A)

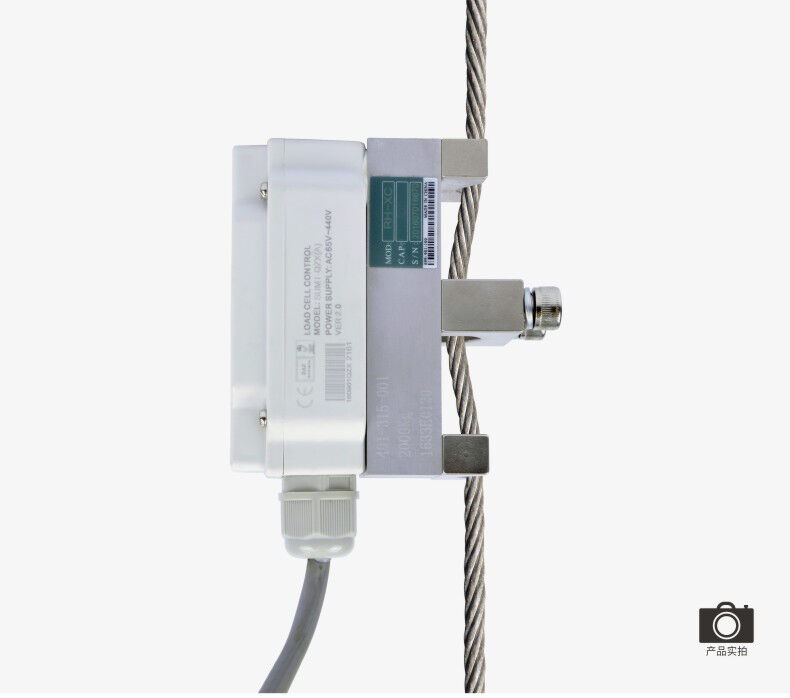

SUMT-QZX(A) Lifting Load Limiter Elevator Load Measuring Device, Overload Alarm, Steel Wire Rope Weight Limit, Elevator Parts
Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.
1, Many specifications
2, good quality
3, reasonable prices
4, thoughtful service
Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.
PS:1.This tariff preference is based on the US CBP Announcement No. * * *, and the final tax rate is subject to actual customs clearance.
2. If the tariff will be adjusted after the window period, unfinished orders can negotiate price adjustments or free cancellation.
|
Model
|
SUMT-QZX(A)
|
|
Product Function
|
1.Has excellent cost-effectiveness.
2.Four digit LED digital tube and multi status indicator display. 3.Multi button operation,quick and easy debugging. 4.Simple debugging,flexible operation, no need to predict weight, intuitive display of load capacity. 5.Green,high-efficiency,low energy power supply. 6.Easy to install, it only takes a few minutes to complete. 7.Supports 1 set of relay signal output. 8.Suitable for single steel wire rope with a diameter of 8-16mm. |
|
Operating voltage
|
AC/DC 16~48V
|
|
Nominal power
|
≤4W
|
|
Relay number
|
1(Overload)
|
|
Contact load
|
8A 250VAC
|
|
Display type
|
4 digits 0.36 inch LED
|
|
Display mode
|
Weight /Percentage
|
|
Reasonable rope number
|
1
|
|
Rope diameter
|
8~16mm
|
|
Rated load
|
4000Kg
|
|
Safe overload
|
150%
|
|
Ultimate overload
|
200%
|
|
Operating temperature
|
-20~+60 ℃
|
|
Size
|
90*84*58mm
|
|
Cable length
|
1m
|
|
Protection class
|
IP65
|
