Elevator Parts Plastic Balance Compensation Chain Elevator Balance Chain

Elevator Parts Plastic Balance Compensation Chain Elevator Balance Chain

Detailed Description of Elevator Compensation Chain

The elevator compensation chain is an essential component of the elevator counterweight compensation system, installed between the bottom of the elevator car and the counterweight frame. It is widely used on medium and high-rise elevators with a lifting height over 30 meters to balance the self-weight difference of traction steel ropes and traveling cables during up and down operation.

Classification & Structure

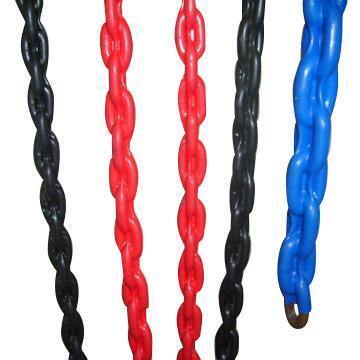

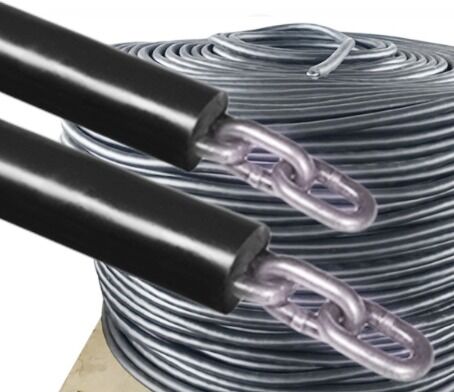

Three mainstream types are available: PVC/TPU plastic-coated chain (general standard type with galvanized steel inner chain), rope-wrapped carbon steel chain (low-cost for old elevators), and fully rubber-enclosed alloy steel chain (heavy-duty for harsh environments). The plastic and rubber outer layers serve for noise reduction and corrosion protection.

Main Functions

1. Compensate weight difference dynamically to reduce the load of the traction motor and avoid jitter during start and stop;
2. Absorb impact and eliminate collision noise of the inner steel chain to improve riding comfort;
3. Protect the internal metal chain from rust, dust and oil erosion;
4. Prevent chain tangling and excessive swinging in the pit for operational safety.

Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.

1, Many specifications

2, good quality

3, reasonable prices

4, thoughtful service

Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.
